How To Set Up Dog IV Practice Kit

This article we will introduce how to set up our DOG IV PRACTICE KIT, including what is in the kit, how to set up each accessories, and things to notice when doing practice.

Unboxing: what’s in the kit?

Each dog IV practice kit includes following accessories:

1. blood infusion bag 100ml x1
2. dog IV model x1
3. IV fluid drip kit x1
4. blood collection syringe x1
5. 60ml syringe x1
6. 60ml syringe long mouth x1
7. bandage tape x1
8. cannula tape x1
9. IV cannulas x2
10. alcohol pads x4
11. 10g simulated blood x1

Here is more introduction to the accessories:

1. blood infusion bag 100ml– for infusing simulated blood in the model.
2. dog IV model — featuring dog cephalic vein in the model for common dog IV practice
3. IV fluid drip kit — includes fluid bag and drip kit, fluid bag can be used repeatedly.
4. blood collection syringe — for dog phlebotomy practice
5. 60ml syringe — for injecting simulated blood to the blood infusion bag
6. 60ml syringe long mouth — for injecting simulated fluid to fluid bag
7. bandage tape — for dog bandaging training
8. cannula tape — for fixating dog IV cannula practice
9. IV cannula — for dog IV catheterization practice
10. alcohol pads — for dog IV practice as part of procedure
11. 10g simulated blood — for making simulated blood

How to Infuse Fake Blood to the Kit?

1. mix fake blood powder with clear water. The amount of fake blood powder used depends on how red and visible you want for the simulated blood. Remember to full dissolve the fake blood powder otherwise it will clog the tube.

2. Fill 60ml syringe with fake blood. Use 60m syringe to inject fake blood into 100ml fluid bag. When connecting syringe with fluid bag, make sure to screw the syringe onto the IV bag connector tightly using the threaded design to prevent any leaks.

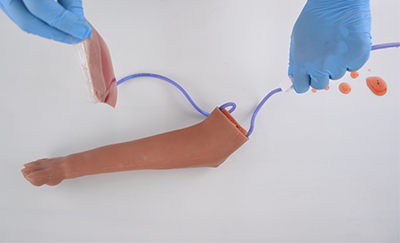

3. connect fluid bag connector with model tube.

4. Place fluid bag in higher position and see fake blood running through the tube.

5. Close the clamp of the end tube to stop fake blood running out.

You can start your dog IV practice now!

Things to note during training:

1. When doing dog IV catheterization practice, to see flashback effect, please hang the blood infusion bag in a higher position so there is enough blood pressure.
2. If no flashback effect, check if any tube has been clogged.
3. You can detach the fake dog skin and check if fake blood is clogged in the tip of leg core. If yes, please trim the curved sections of the leg core tip slightly to ensure the tubing (veins) doesn’t get pinched or squeezed.

How to Set Up Dog IV Fluid Drip Practice Kit?

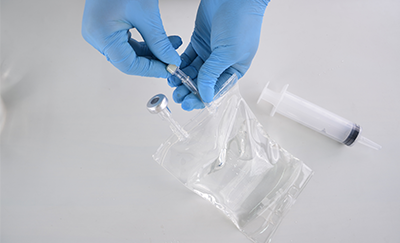

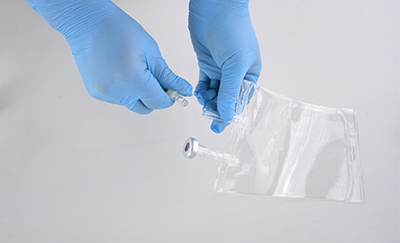

1. unplug the stopper from 500ml fluid bag

2. use long mouth syringe to infuse water

3. plug in stopper to prevent leaking(simulated fluid) into 500ml fluid bag fluid bag(pls do not plug in too deep)

4. close roller clamp first

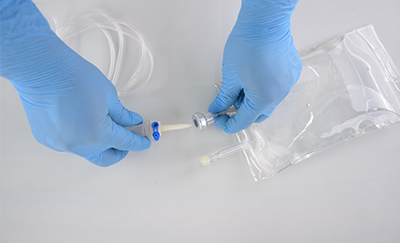

5. For IV drip set up practice, insert sharp end of IV drip kit into fluid bag

6. Open the clamp in the dog IV model end tube to allow IV drip coming in the model

7. You could start your dog IV fluid practice!

With our dog IV practice kit, you could practice dog IV injection, dog phlebotomy and venipuncture, dog IV fluid drip, and dog bandaging techniques. Hope this article provides enough guidance on setting up the kit! Please write to us if any other questions!
